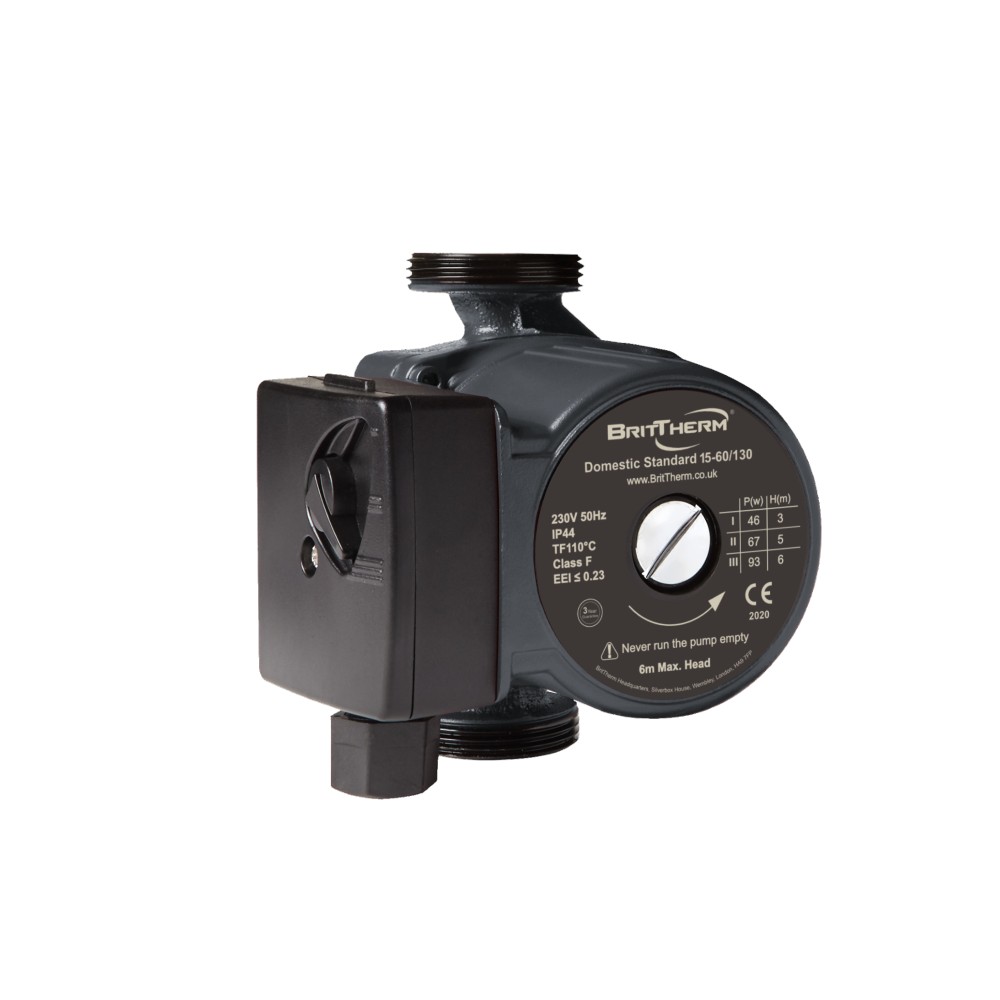

BritTherm Domestic Standard 15-60/130 Heating Circulator DS15

Technical Specification

• Connection Size: 1 _√ì
• Port to Port Distance: 130mm
• Maximum Head: 6 Meters
• Maximum Flow: 3.9m_ Per Hour
• Energy Efficiency Index (EEI): 0.23
• Speed Control: 3 Fixed Speeds
• System Pressure: 1.0 MPa / 10 Bar
• Protection Class: IP42
• Temperature Class: TF110¬ºC
• Insulation Class: F
• Supplied With: Rubber Washers x2
• Material: Cast Iron
• Colour: Red/Black
• Weight: 2.4 kg
