Description:

The nickel-plated, brass TF1 Omega Filter is small, smart and simple. It fits onto vertical and horizontal pipework at up to a 45-degree orientation and is simple to install with quality valves or slip socket connection.

• High capacity and compact design
• Ideal for use in restricted spaces and access areas
• Easy to install – fits on horizontal and vertical pipework in both flow directions. The filter can operate at an angle of 45°
• Fast and easy to clean without dismantling the unit
• Unique action, removes magnetic and non-magnetic contaminants from system water
• Easy to fit slip socket with compression fitting and short pipe cut-out length
• Will not block or restrict the flow
• Smart, tough, forged brass construction (no hidden porosity) with nickel plating
• Unique manifold with double radial seals and multiple orientation capabilities
• Powerful neodymium magnet assembly with threaded magnet cap
• As with all magnetic products, if you have an implanted cardiac device extra caution should be taken at all times when handling any magnetic filter
• Available as 22mm and 28mm products

Specification

• Maximum operating temperature: 100°C
• Maximum operating pressure: 10 bar
• Maximum flow rate: 50 L/min
• Magnetic characteristics: Powerful neodymium magnetic assembly
• Drain valve characteristics: Easy to install with multiple orientation capability
• Filter material: Tough, forged brass construction with nickel plating. Compatible
• with EN 12165-CW617N-M

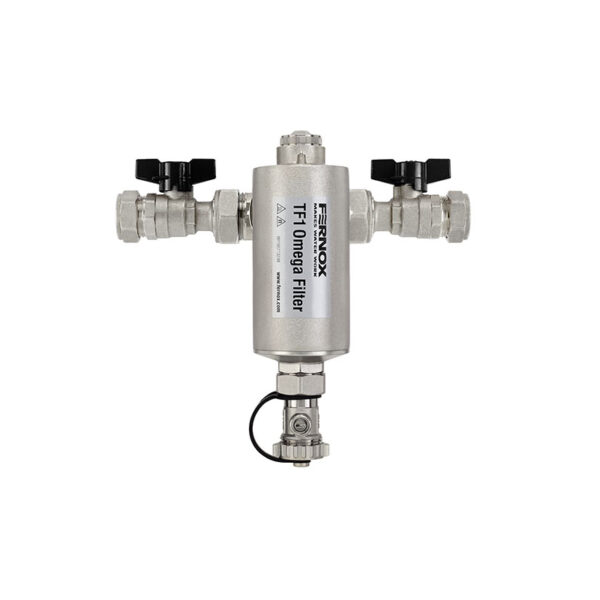

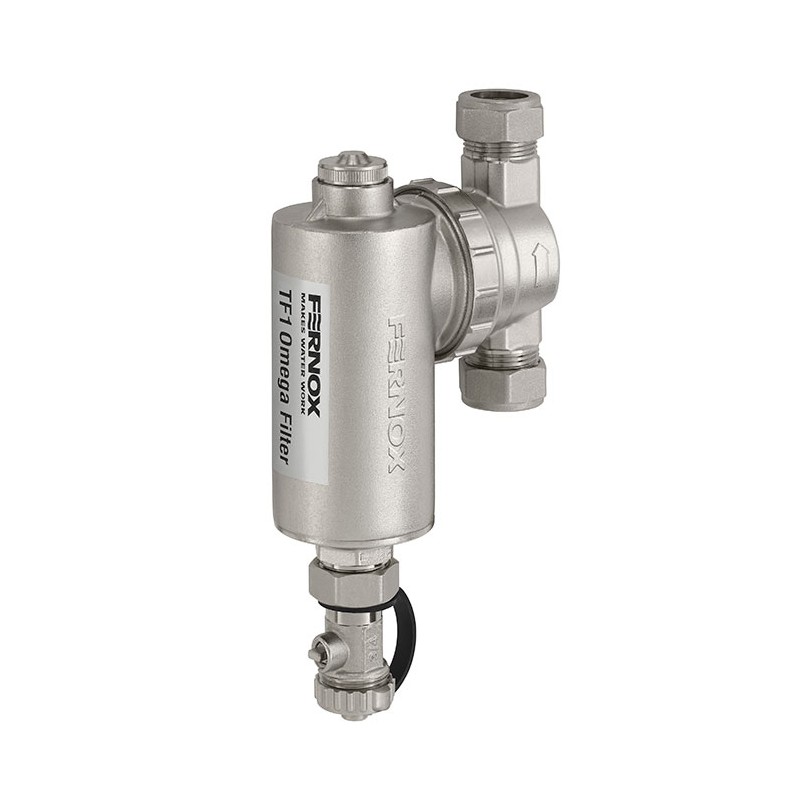

Fernox TF1 Omega Filter 62248, Next generation, nickel-plated, brass in-line system filter. Small, Smart and Simple to Install. The TF1 62248 Omega Filter comes with a 25-year warranty
