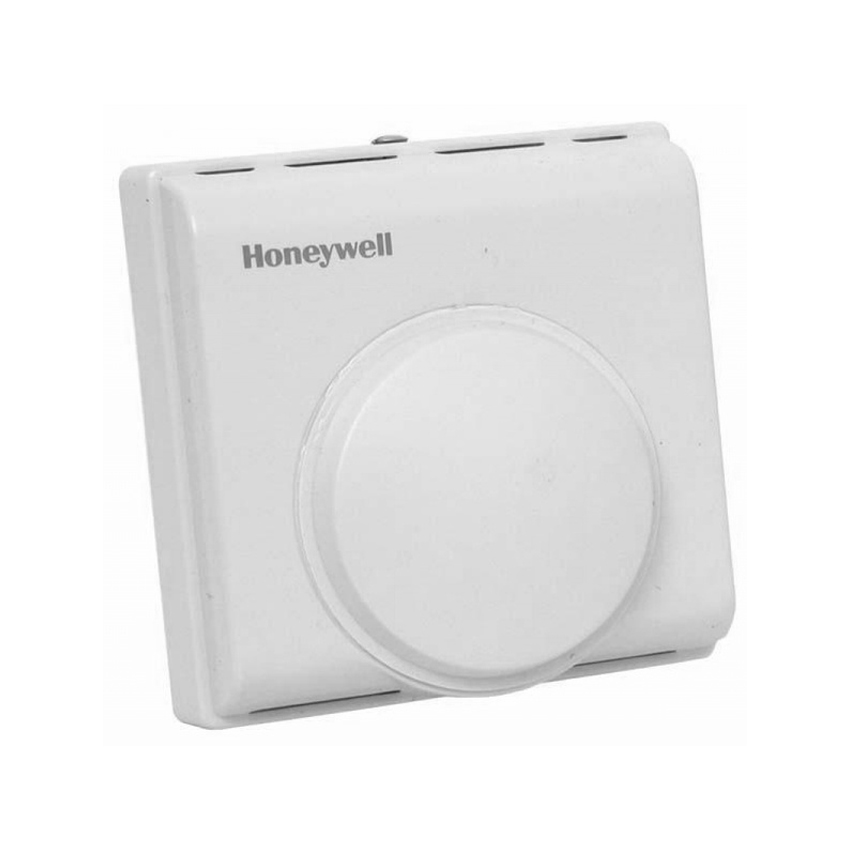

T6360 Room Thermostat The T6360 is a mains voltage Room Thermostat designed to give automatic temperature control of domestic wet central heating systems. It can be used to directly switch a circulating pump or boiler, or to operate spring return and motor open/motor close zone valves. The T6360 can switch electrical heating loads up to 10A. The T6360 thermostat can also be used for cooling applications.Features
- Wall mounted line voltage room thermostat.
- For general purpose control of gas valves, zone valves, circulation pumps, ventilators, boilers etc. in heating or cooling systems.
- Approvals: CE
- Protection class: IP30
- Switch function/capacity: SPDT 230 Vac, heating terminal 10 A resistive, 3 A inductive cooling terminal 6 A resistive, 2 A inductive
- Lamp is generally supplied potential free, and can be wired to indicate heating or cooling operation, or boiler lockout.
- Terminal max. wire size: 4mm2
- Temp. setpoint range: 10…30C
- Differential fixed: 1C
Options
