Features

• ¾” x ø22 setting 7 bar
• Prevents damage to heating systems by relieving excess temperature and pressure
• Factory pre-set temperature discharge at 90°C – non adjustable
• Range of factory set discharge pressures available
• Available with long or short probes and 1⁄2” or 3⁄4” connections
• DZR brass body

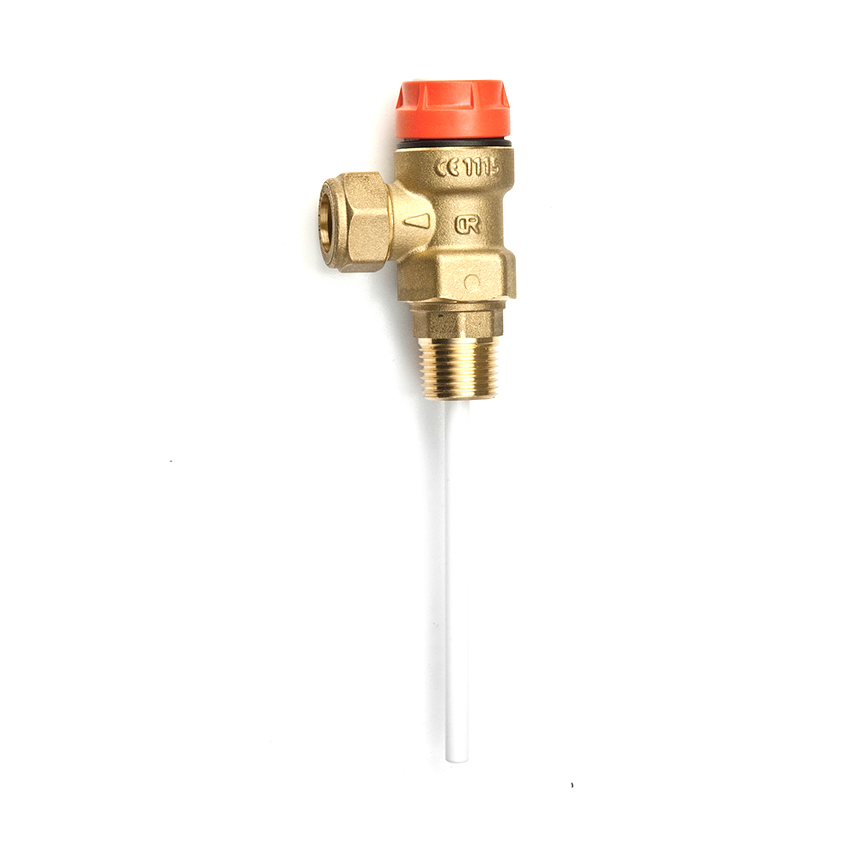

Inta’s Temperature and Pressure relief valves (T & P) are designed to discharge excess pressure which builds up inside sealed systems during the heating cycle. If the water inside the cylinder reaches above 90°C the T & P valve will discharge the hot water protecting the cylinder and components from excessive temperatures. During normal operating conditions nothing will be discharged from the valve.
