As water passes through the metal pipes of your boiler, rust, dirt and debris can form and will severely affect the performance of the whole central heating system and that’s why, when you have a new boiler installed, an in-line filter should be fitted at the same time. The Intergas System Filter developed in partnership with Fernox, collects these contaminants, preventing them from entering the system. This will not only help to optimise the energy efficiency and longevity of the boiler and radiators, it will also add an additional two years to the Intergas boiler warranty.

When you fit a new boiler, an in-line filter should
be installed at the same time. The Intergas System
Filter, which we’ve developed in partnership with
Fernox, collects contaminants, preventing them from
damaging the system.

This will not only help to optimise the energy efficiency
and longevity of the boiler, it will also add an additional
two years to the Intergas boiler warranty.*

* terms and conditions apply

Features

• Made from nickel-plated brass and stainless steel,
  this filter is 100% recyclable and is built to last
• When it comes to cleaning there’s no need to
  dismantle the filter and, thanks to its encapsulated
  body, the whole process is fast and easy; there’s no
  top seal either, so no leaks
• Includes a 22mm spigot isolation valve and
  Fernox’s unique Hydronic Particle Separation
  with magnetic filtration
• Hassle-free to install on either horizontal or
  vertical pipework
• Fast chemical dosing, even on a pressurised system
  (1 to 1.5bar) using a Fernox express canister
• Powerful neodymium magnet plus Hydronic Particle Separation
• Full flow drain and flushing valve

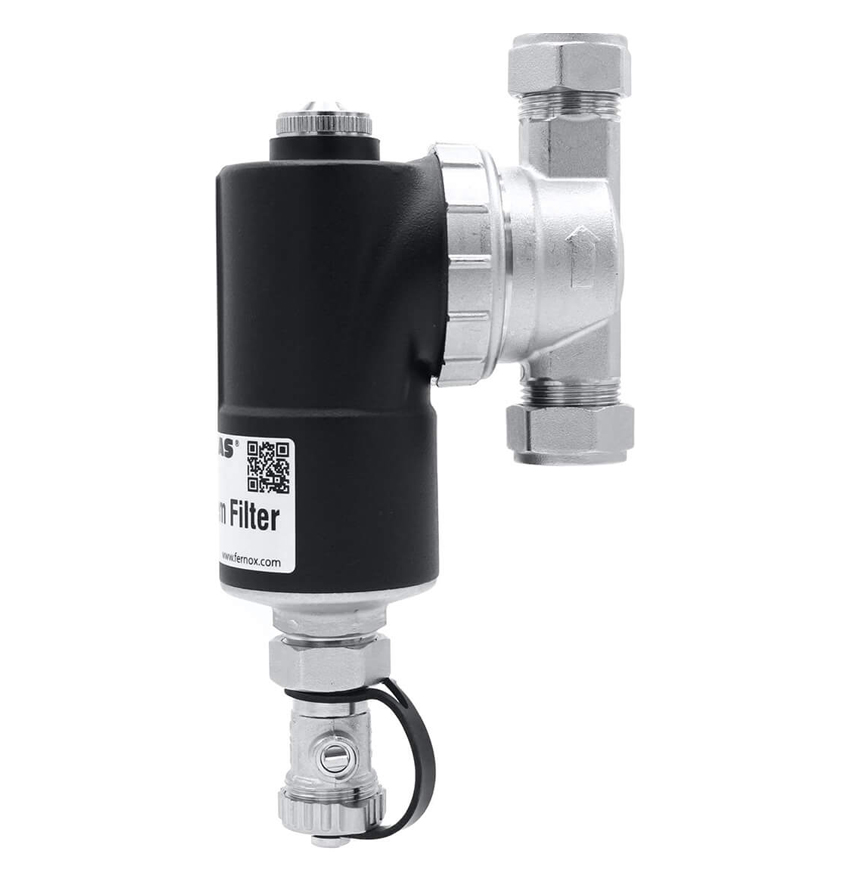

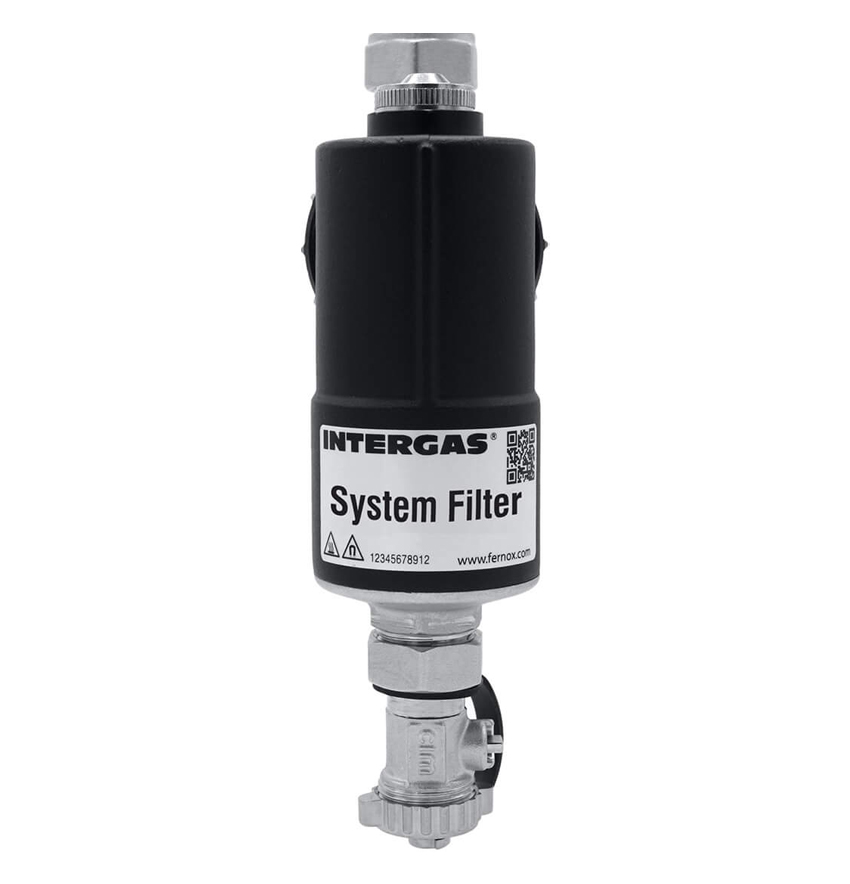

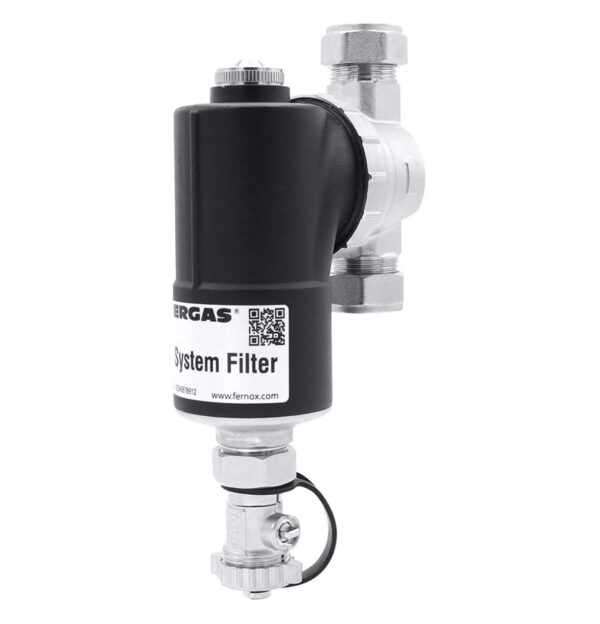

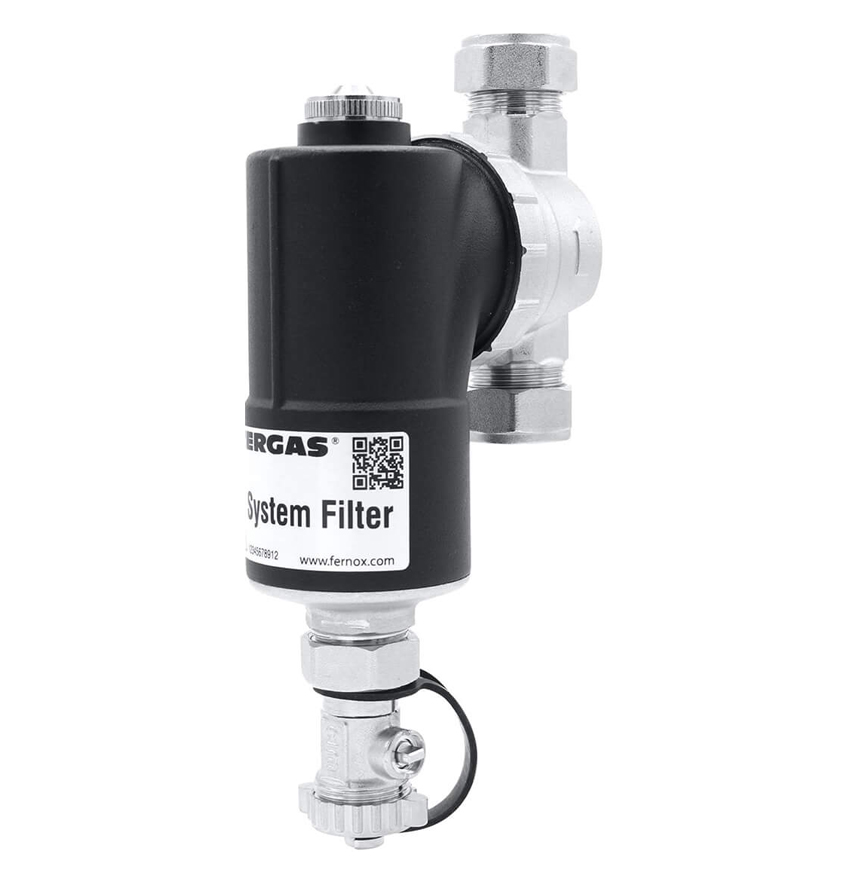

Intergas 22mm System Filter 090897 Intergas 22mm System Filter 090897,Intergas Boilers in collaboration with Fernox, has launched the Intergas 22mm Magnetic Filter 090897. Made from nickel-plated brass with a stainless steel particle filter, this in-line system filter will not only optimise the energy efficiency and longevity of the central heating system, it will also make compliance with BS 7593:2019 and Part L of the Building Regulations easier. For installers of Intergas boilers there’s an additional benefit: two more years will be added to the boiler’s warranty (contracts excluded). To be eligible, installers must fit the filter and boiler on the same date and in line with the Manufacturer’s Instructions, and both warranties must be registered with Intergas at the same time. The 22mm Magnetic Filter includes a 22mm spigot isolation valve (for the bottom connection) and Fernox’s Hydronic Particle Separation with magnetic filtration, which removes magnetic and non-magnetic system debris. When it comes to cleaning, there’s no need to dismantle the filter and, thanks to its encapsulated body, the whole process is fast and easy; there’s no top seal either. The TF1 Omega flushing adapter, which is available separately, makes it easier to flush and clean the entire system from the filter point at full flow rate. The spigot valve works in conjunction with the boiler return valve to isolate the filter or, using just the spigot valve and boiler flow valve, you can easily drain the boiler down via the filter’s flushing/draining valve. The system filter is hassle-free to install on horizontal or vertical pipework and comes with a 15-year warranty. Made entirely from metal, it’s also 100% recyclable.
