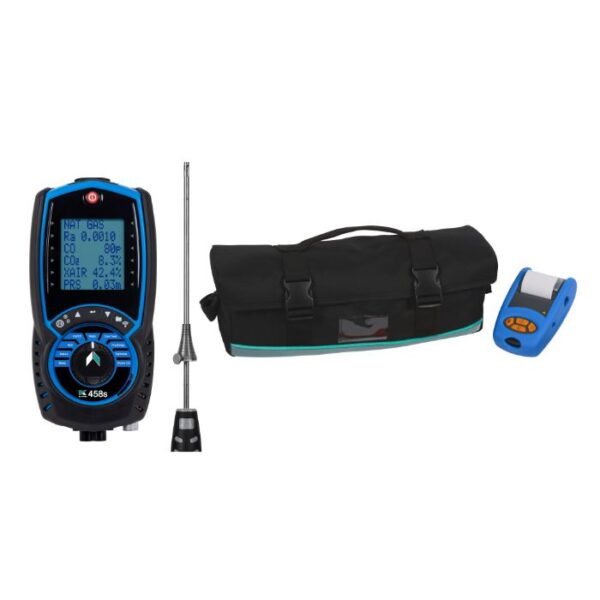

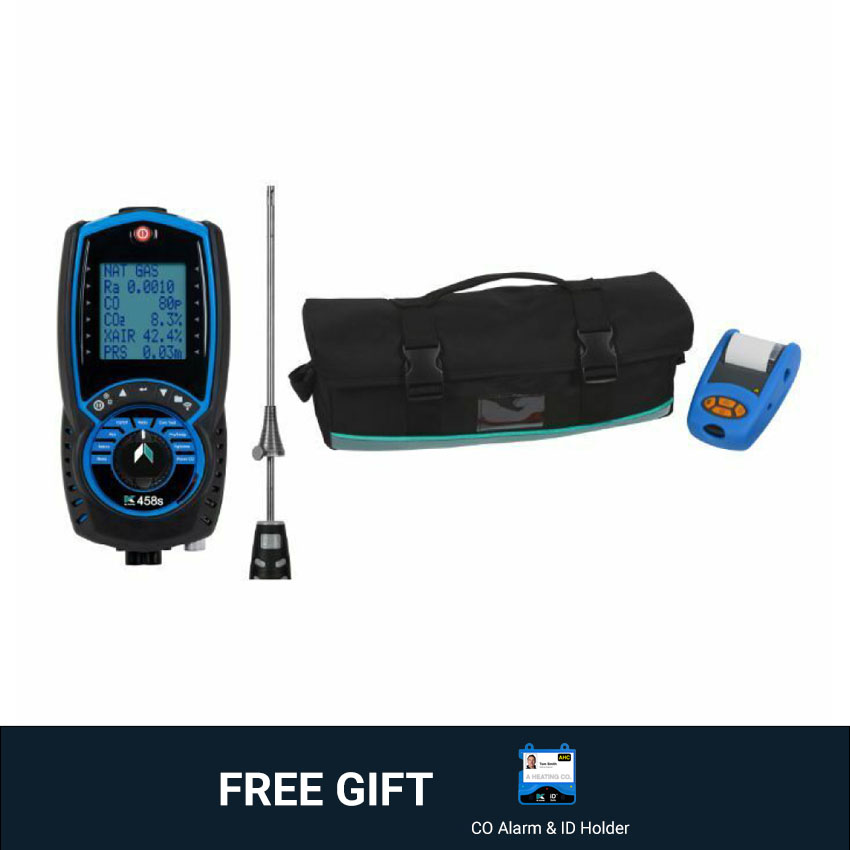

Kane Flue Gas Analyser Standard 458s Kit

Features

Structured commissioning test
Rotary dial & 6 line display
Data hold, log & print with user details to optional printer
- Combustion – Pressure – Let-by & Tightness
- Temperature – CO build up – Commission test

ApplicationMeasures

CO 0-2,000ppm

Differential temperature

High accuracy differential pressure meter +/- 80mbar

O₂√ä0-21% (option)

NO 0-600ppm (option)

High Range CO 0-10,000ppm (option)

Calculates

CO/CO₂√äratio

Excess air

Combustion efficiency

NOx (option)

KANE458s Flue Gas Analyser with direct CO, CO2 & CO sensor protection

Latest upgradeable sensor technology

Easy to use rotary dial

Purge pump protection prevents accidental damage to CO sensor

Wireless as standard

Hydrogen (H₂√ä) ready √ê up to 20% blend

	Standalone Analyser	Standard Kit	PRO Kit	CPA1 Kit	Oil Kit
Kane 458s Flue Gas Analyser	+	+	+	+	+
Wireless Connectivity	+	+	+	+	+
Probe	+	+	+	+	+
Pressure Connectors	+	+	+	+	+
CO Sensor Purge Pump Protection	+	+	+	+	+

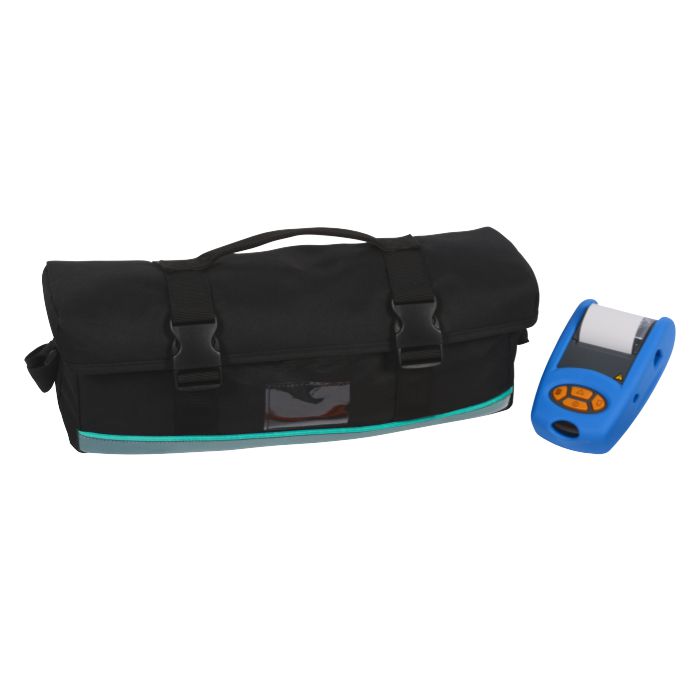

KANE IRP-2 Infra-red printer		+	+	+	+
Air/liquid temperature probe			+	+
GLD450 Plus Gas Leak Detector			+	+
Pipe Clamp Temperature Probes			+	+
Pressure connection hose			+	+
ASP2 Appliance Sampling Probe Kit				+
Oil pressure test set					+
Calibration Report	+	+	+	+	+
Carry Case		+	+	+	+
