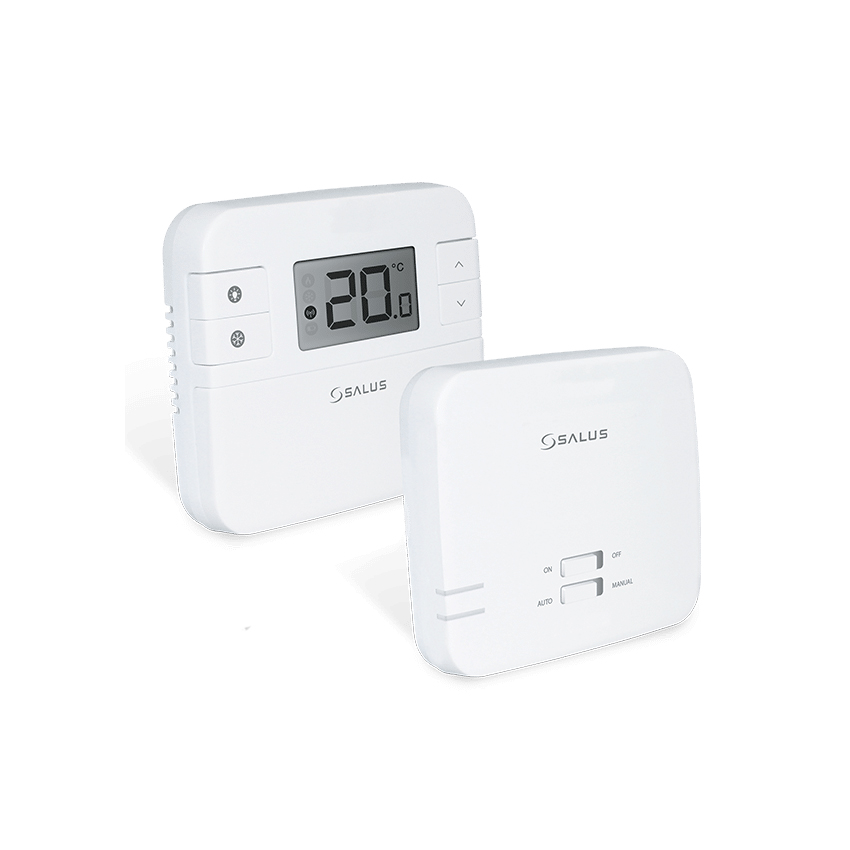

Salus Digital Electronic Thermostat RT310RF

The RT310RF is a stylish, simple to install and use wireless RF room thermostat .

FEATURES

• Switching volt free and 230V
• Sleep Mode
• Frost Protection
• Desk Stand
• 5 Year Warranty
• Frequency 868 MHz with 30 metre range
• Simple Operation
• 16 amp relay switching

NEW FEATURES

• Pre-paired wireless communication, so no more dip switches!
• Contemporary design
• RF Test Function
• Easy Installation
• Receiver manual override switch

Thermostat Supply:	2xAA Batteries
Receiver (RX) Supply:	230V AC 50Hz
RX Rating Max:	16 (5) A SPST
RX Input/Output:	0 – 230V
Thermostat Scale:	5 – 35°C
Thermostat Size (mm):	W-96 H-96 D-27
Receiver Size (mm):	W-96 H-96 D-27

N	Neutral connection
L	Live connection
COM	Input
NO	Switch output

RT310 / RT310TX / RT310RF is a digital room thermosat used to control room temperature. Device launching heating system by shorting terminal blocks, simultaneously informing the action and showing this information on the LCD display. Before use please read this manual carefully. Use only AA 1.5 V alkaline batteries in the thermostat. Place the batteries into the battery slot located under the cover. Do not use rechargeable batteries.
