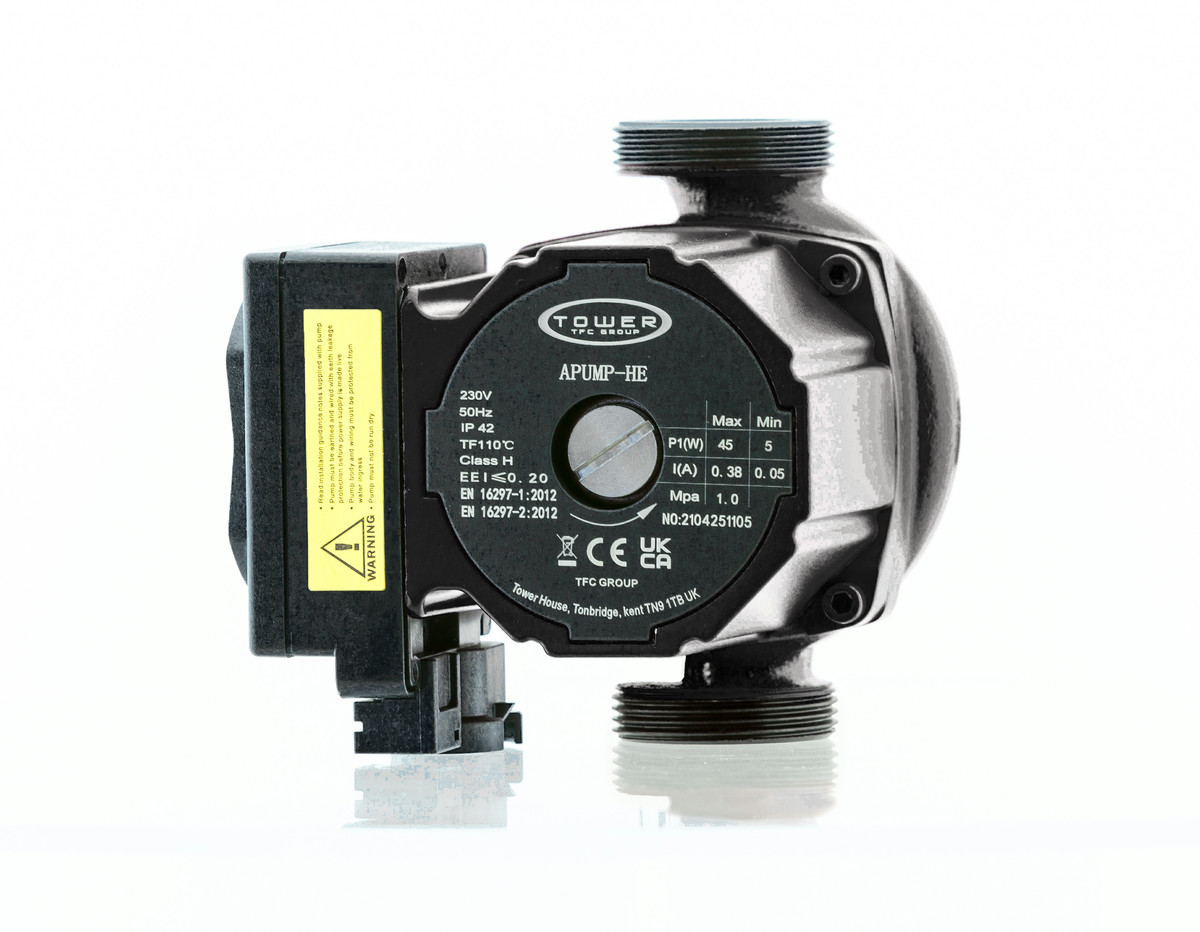

The APUMPHE is a high-efficiency permanent magnet canned-motor central heating pump, for circulation of the primary water in a domestic heating system. Equipped with a differential pressure controller, the APUMPHE (when in auto setting) continuously adjusts its power input according to system load, to match the pump power to the system requirement. Alternatively, if required the installer or user can set the pump on a constant speed setting, between Min—Max levels.

Specification:

Dimensions: 130 x 130 x 128mm

Connection: 1.5” G1 (BSP) threaded flange

130mm Across Ports

Output: Max. 6m head

Max Flow Rate: 3.0 L³/ hour

Supply Voltage: 220-240V AC 50Hz

Power: Auto-adjusting, 5—45 Watts

Noise level: < 43 dB(A)

Max Flow Rate: 3 cubic Ltrs/hour

ERP Compliant

E.E.I. < 0 .20
