Drayton Room Thermostat RTS2
Drayton Room Thermostat RTS2
- Availability:In stock
- Manufacturer:Drayton
- Part Number:RTS2
- Rep. Part Number:24002
ALWAYS REFER TO MANUFACTURER'S INSTRUCTIONS
Drayton technical number 08451 305522
£25.09 (Inc. VAT)
- Product Overview
- Description
Features
- 3°C to 10°C range
- S.P.S.T.2(1)A 230V AC
- Double insulated (no earth required)
- Range limiting stops
- Surface or conduit box mounting
- Set point locking
Specifications
| Part number | 24002 |
| Energy Class | IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013) |
| Relevant EC directives | 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2011/65/EU RoHS Directive |
| Applied standards | EN60730-1; EN60730-2-9 |
| Setting range | 10°C – 30°C |
| Control accuracy | <0.6ºC at 4º/hour |
| Ball pressure test | 75ºC |
| Pollution degree | 2 | Power supply | 24-230V a.c./d.c. 50Hz fused 3A double insulated (no earth required) |
| Mounting | Suitable for surface or conduit box mounting |
| Wiring | Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671) |
| Switch type & rating | S.P.S.T 2(1)A 230V a.c. |
| Ambient operating temperature | 0ºC to 40ºC |
| Ambient storage temperature | –20ºC to 55ºC |
| Ambient operating humidity (non condensing) | 25% to 90% |
| Ambient storage humidity | 15% – 95% |

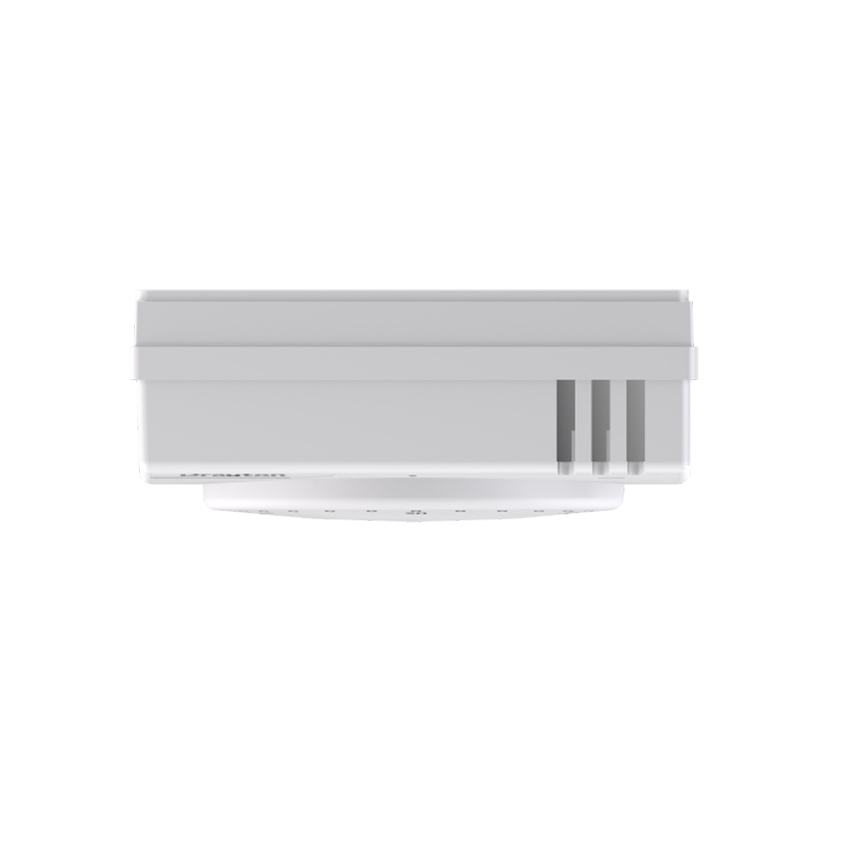

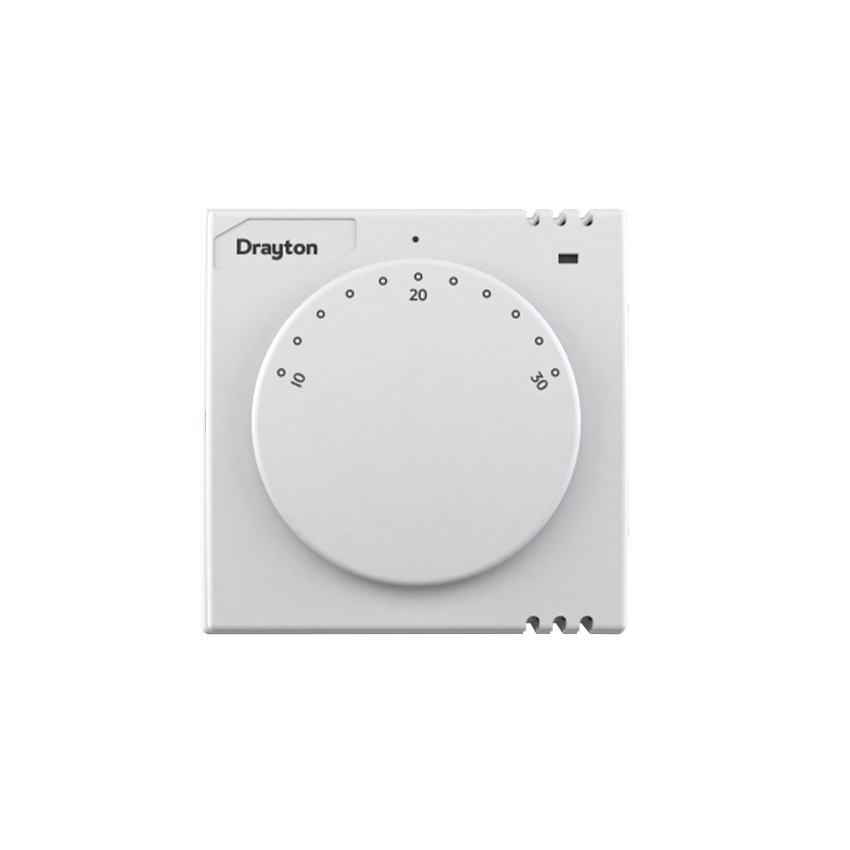

Standard room thermostat with LED ‘on’ indicator, utilising electronic sensing to provide accurate temperature control.
